The B-17G Flying Fortress / Spec's


btlatermodels copy.gif (1769 bytes)













Click Picture above for larger size

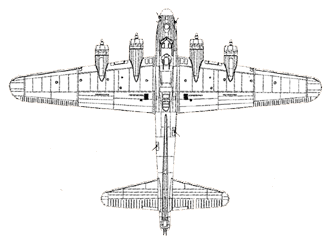

B-17G Top View

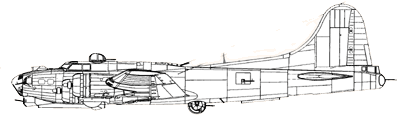

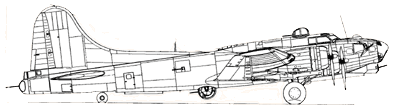

B-17G Side Views





463rd Historical Society
P.O. Box 1137
La Canada, Ca. 91012
SwooseGroup@463rd.org

B-17G Specifications
FUNCTION Heavy Bomber
DESIGNER Boeing
BUILDERS Boeing
Lockeed / Vega
Douglas
CREW Pilot
Co-Pilot
Navigator
Bombardier
Engineer
Radio Operator
4 Gunners
COST $276,000
# BUILT 12,726
Powerplant
Four Wright B-1820 - 97
Radial Piston Engines
1200 Horse Power
Dimensions
LENGTH 74 feet   4 inches
WINGSPAN 103 feet   10 inches
HEIGHT 19 feet   1 inch
Weights
EMPTY 36,135 lbs.
MAXIMUM 65,000 lbs
Performance
SPEED 300 mph
CEILING 35,000 feet
RANGE 1850 miles
FERRY RANGE 3400 miles
Armament
Thirteen 50 caliber guns
Bomb Load
6000 lbs
